S2M
Features
| Outline(L x W x H)mm: 12.4 x 7.4 x 9.9 |
| ● Very small size with light weight. |
| ● Various coil sensitivity types are available. |
| ● Plastic sealed and flow solder types are available. |
| ● Wide operation coil voltage range. |
Ordering information
| S2M | - | 12 | B | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S2M | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (3V~24V) |
| 3. | B | -- | High sensitivity Type (0.2W) |
| Blank: Standard Type (0.36W) | |||
| 4. | S | -- | Sealed type washable |
| Blank: Sealed type |

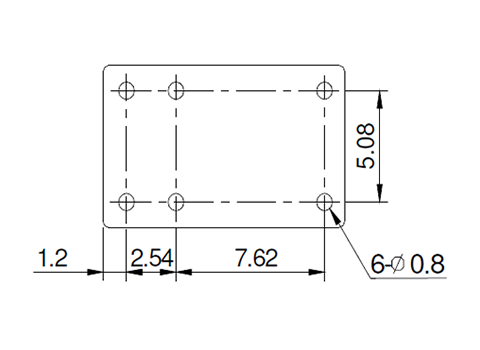

PC Board Layout
