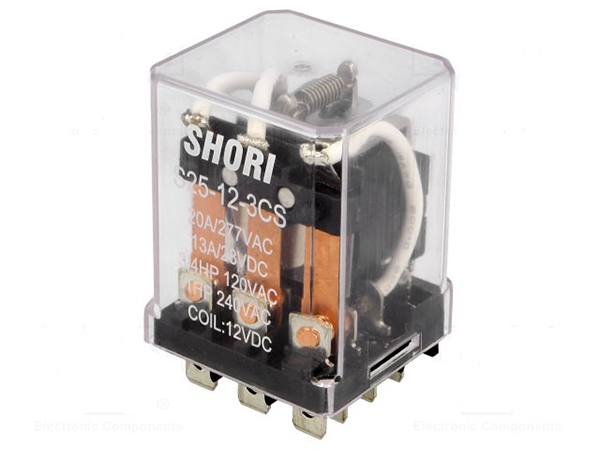

S25
Features
| Outline(L x W x H)mm: 34.8 x 38.0 x 56.3 |
| ● 20A/30A general purpose power relay |
| ● SPDT,DPDT and TPDT contact configurations |
| ● DC and AC coil |
| ● Socket and PCB terminal available |
Ordering information
| S25 | - | 12VDC | - | 2C S | F |
| 1 | 2 | 3 4 | 5 |
| 1. | S25 | -- | Basic series designation |
| 2. | 12VDC | -- | CoilVoltage |
| 3. | 1A | -- | Single pole normally open |
| 1B | -- | Single pole normally closed | |
| 1C | -- | Single pole double throw | |
| 2A | -- | Double pole normally open | |
| 2B | -- | Double pole normally closed | |
| 2C | -- | Double pole double throw | |
| 3A | -- | Three pole normally open | |
| 3B | -- | Three pole normally closed | |
| 3C | -- | Three pole double throw | |
| 4. | S | -- | Quick connect terminals |
| P | -- | PCB terminals | |
| 5. | Blank | -- | Standard type |
| F | -- | Class F |

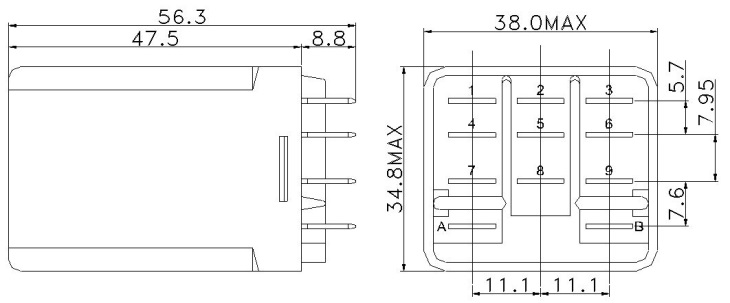

PC Board Layout
