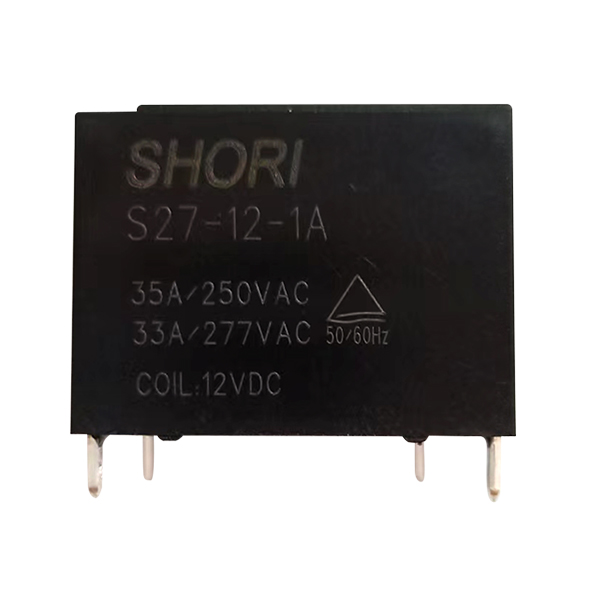

S27
Features
● 35A switching capacity.
● Applicable to inverter used for photovoltaic power generation systems.
● Ideal for UPS.
● Contact gap 1.5mm,2.0mm.2.3mm(compliant with Photovoltaic Standard VDE0126 and IEC62109).
● Low coil holding voltage contributes to saving energy of equipment.
● The clearance distance between contact and coil is bigger than 6.4mm, the creep distance between contact and coil is bigger than 8mm.
Ordering information
| S27 | - | 12 | - | 1A |
| 1 | 2 | 3 |
| 1. | S27 | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (6V~24V) |
| 3. | 1A | -- | 1 Form A, Single pole normally open |

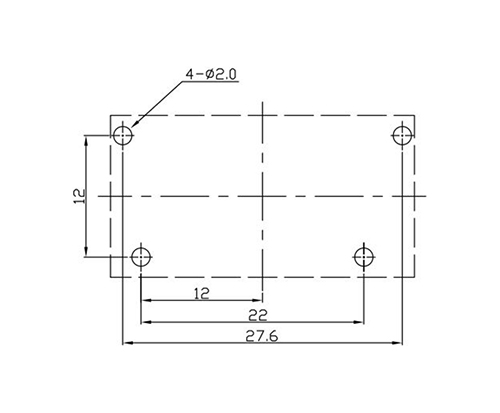

PC Board Layout
